MOSFET Interview Questions (Freshers)

1. What is a MOSFET?

A fundamental question to start with. A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is a type of transistor used for amplifying or switching electronic signals. It works by varying the width of the channel through which charge carriers (electrons or holes) flow.

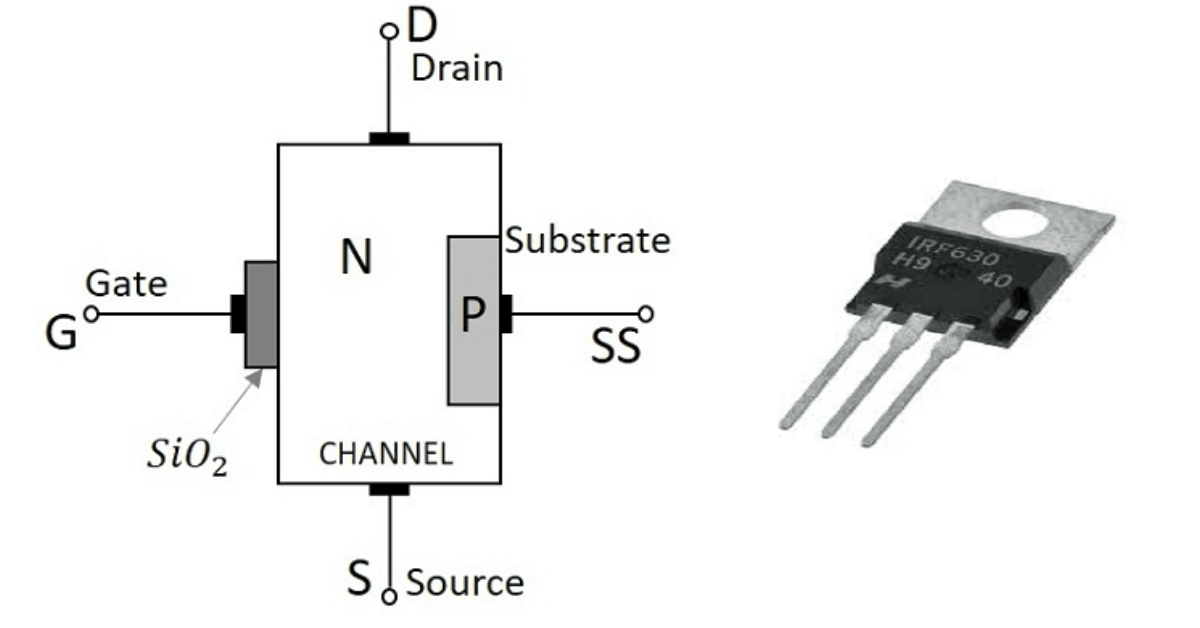

MOSFET Interview Questions

2. What is the basic working principle of a MOSFET?

The basic principle of a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is to control the flow of current between two terminals (the Source and Drain) by varying the voltage applied to a third terminal, called the Gate.

Here’s a breakdown of the principle

  1. Gate Voltage Controls the Channel
  • Key Concept: A MOSFET operates by creating or depleting a conductive channel between the Source and Drain terminals using the Gate terminal.
  • Gate Structure: The Gate is insulated from the channel by a thin layer of oxide, typically silicon dioxide, which means there is no direct current flow between the gate and the channel.
  • Electric Field Effect: The voltage applied at the Gate induces an electric field that controls the number of charge carriers (electrons or holes) in the semiconductor material beneath the gate. This is why it’s called a Field-Effect Transistor (FET).
  1. Types of MOSFET Operation (Enhancement vs. Depletion)
  • Enhancement Mode:
    • In enhancement-mode MOSFETs, the channel is normally absent. Applying a voltage to the Gate creates a conductive channel between the Source and Drain by attracting charge carriers (electrons for N-channel or holes for P-channel).
    • In N-channel MOSFETs, a positive Gate voltage induces electrons in the channel, turning the MOSFET “on.”
    • In P-channel MOSFETs, a negative Gate voltage attracts holes, turning the MOSFET “on.”
  • Depletion Mode:
    • In depletion-mode MOSFETs, the channel is normally present, and applying the opposite Gate voltage depletes the channel of charge carriers, reducing or stopping current flow.
    • In N-channel depletion MOSFETs, a negative Gate voltage reduces the number of electrons, turning it “off.”
    • In P-channel depletion MOSFETs, a positive Gate voltage reduces the number of holes.
  1. Control of Current Flow
  • When a conductive channel forms (or is present), current can flow from the Drain to the Source (or vice versa depending on polarity).
  • The Gate voltage controls how many charge carriers are available in the channel, regulating the amount of current that can pass through. This principle is used to control switching in digital circuits or amplification in analog circuits.
  1. High Input Impedance
  • Due to the oxide insulation between the Gate and the channel, MOSFETs have extremely high input impedance. This allows the Gate to control the channel with very little power consumption, making MOSFETs highly efficient in low-power applications.

3. What are the different types of MOSFETs?

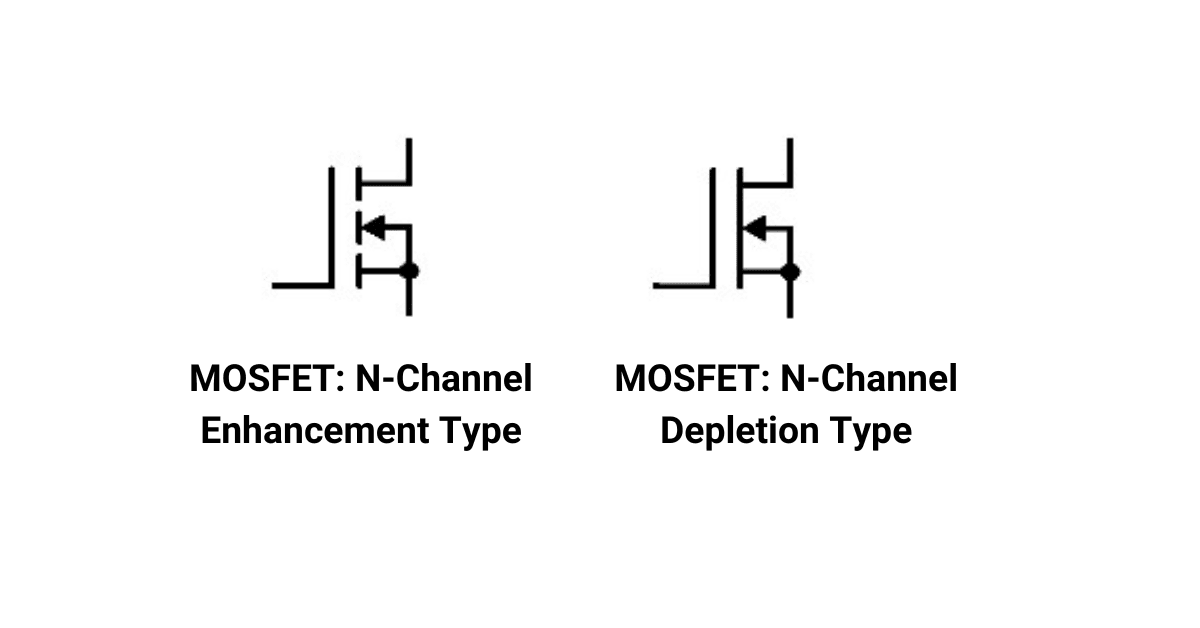

Enhancement and Depletion N-Channel MOSFET

Depletion-Type N-Channel MOSFET

  • Explanation: This MOSFET operates in depletion mode, meaning the device is normally “on” without any gate voltage applied. A negative voltage at the gate can deplete the number of charge carriers (electrons) in the channel, which reduces current flow.
  • Interview Key Points:
    • The device is normally conducting.
    • Applying a negative voltage to the gate reduces the current flow.
    • Used in circuits where constant conduction is needed unless turned off by a gate voltage.
  1. Depletion-Type P-Channel MOSFET
  • Explanation: Similar to the depletion-mode N-channel MOSFET, this P-channel MOSFET is normally “on.” However, it uses holes as charge carriers instead of electrons. When a positive voltage is applied to the gate, it depletes the channel and reduces current flow.
  • Interview Key Points:
    • Normally conducting, but current is carried by holes instead of electrons.
    • Requires a positive gate voltage to turn off the device or reduce current.
    • Less common compared to N-channel MOSFETs but still important for complementary circuits (e.g., CMOS).
  1. Enhancement-Type N-Channel MOSFET
  • Explanation: The most commonly used MOSFET in digital electronics, this device is normally “off.” It requires a positive gate voltage to induce a conducting channel of electrons between the source and drain.
  • Interview Key Points:
    • Normally off, requires positive gate voltage to turn on.
    • Conducts when the gate voltage exceeds the threshold voltage (Vth).
    • Widely used in digital circuits like switching applications and power transistors.
  1. Enhancement-Type P-Channel MOSFET
  • Explanation: This device is the complement to the N-channel enhancement MOSFET, operating with a negative gate voltage to turn “on.” It conducts when the gate voltage is more negative than the source.
  • Interview Key Points:
    • Normally off, requires a negative gate voltage to conduct.
    • Used in conjunction with N-channel MOSFETs for CMOS (complementary metal-oxide-semiconductor) technology, allowing efficient logic design.

Bonus -> Logical question: Why are N-channel MOSFETs typically faster than P-channel MOSFETs?

Hint: Think about electron mobility compared to hole mobility in semiconductors.

4. What is the difference between Depletion Mode and Enhancement Mode MOSFETs?

  • Depletion Mode MOSFET: The transistor is normally ON and needs a gate voltage to turn OFF.
  • Enhancement Mode MOSFET: The transistor is normally OFF and needs a gate voltage to turn ON.

5. Can you explain the I-V characteristics of a MOSFET?

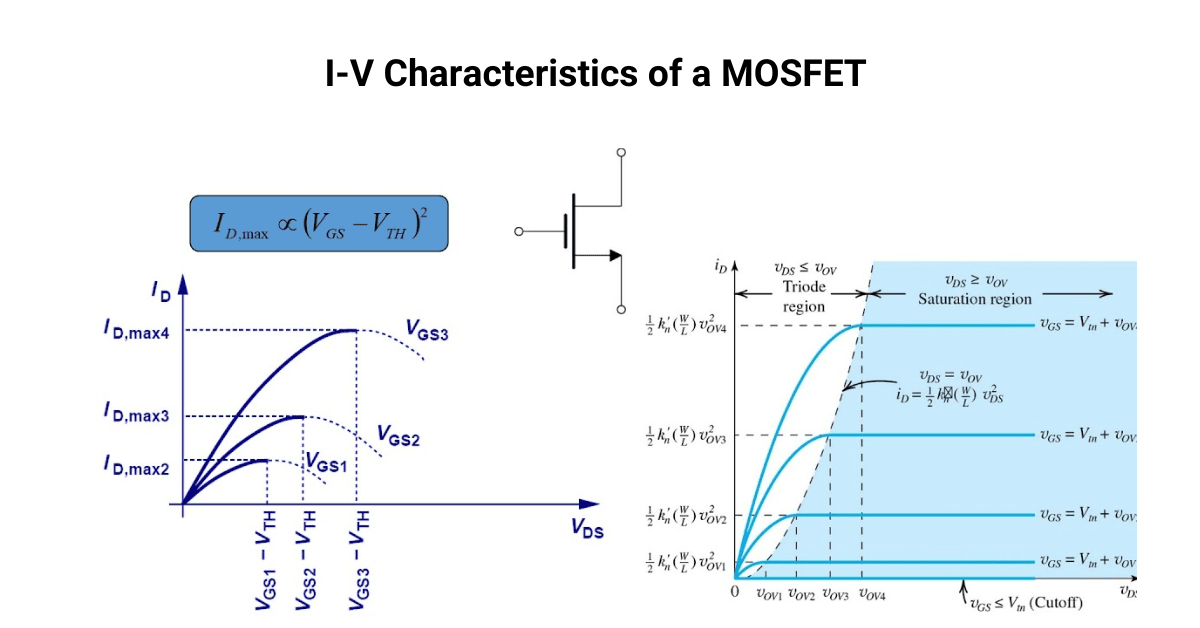

I-V Characteristics of a MOSFET

The I-V characteristics of a MOSFET illustrate how the drain current (Id) varies with the drain-to-source voltage (Vds) for different values of gate-to-source voltage (Vgs).

6. What is the threshold voltage of a MOSFET?

The threshold voltage (Vth) is the minimum gate-to-source voltage that is required to create a conducting path between the drain and source.

7. What is the main application of MOSFET?

The main application of MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) is as switches and amplifiers in electronic circuits. Here’s a detailed explanation of these key applications, particularly for interviews:

  • Switching Applications
  • Amplification Applications
  • Voltage Regulation
  • Motor Control and Inverters

Follow-up question: Can you provide an example of a MOSFET being used in an everyday electronic device?

Hint: Think about mobile phones, laptops, or even power supplies.

8. How does a MOSFET differ from a Bipolar Junction Transistor (BJT)?

Feature MOSFET BJT

Control

Voltage-controlled (Vgs)

Current-controlled (Ib)

Input Impedance

High (Gate current β‰ˆ 0)

Low (Requires Base current)

Switching Speed

Faster

Slower

Power Efficiency

More efficient (lower gate power)

Less efficient (higher power loss)

Thermal Stability

Better thermal stability (positive temp coeff.)

Prone to thermal runaway (negative temp coeff.)

Applications

Switching, power supplies, digital circuits.

Amplification, analog circuits, low-speed switching.

MOSFET: A voltage-controlled unipolar device with faster switching, high power efficiency, and better thermal stability, making it ideal for high-speed switching and power control applications.

BJT: A current-controlled bipolar device with high current gain but slower switching and higher power dissipation, suited for analog circuits and applications requiring signal amplification.

9. What is channel length modulation?

Channel length modulation occurs when the length of the conduction channel in a MOSFET is reduced due to an increase in the drain-source voltage, affecting the output characteristics of the MOSFET.

10. How are MOSFETs used in voltage regulator circuits?

MOSFETs are integral to switching regulators (e.g., Buck, Boost converters) due to their high efficiency and fast switching. They act as switches, turning on/off rapidly to maintain the output voltage while minimizing energy loss.

11. How do parasitic capacitances affect MOSFET performance?

Parasitic capacitances (gate-to-drain, gate-to-source, and drain-to-source) influence switching speeds and power loss. High capacitance slows down switching transitions, increasing dynamic power consumption in high-frequency circuits.

MOSFET Interview Questions (Experienced)

For experienced candidates, the questions are more detailed, delving into advanced concepts, practical applications, and problem-solving abilities.

1. Explain the concept of body effect in MOSFET.

Body effect refers to the change in the threshold voltage of a MOSFET due to a voltage difference between the source and the body (substrate) of the device.

Logical question: Why is it important to minimize the body effect in certain MOSFET applications?

Hint: Consider how it affects the threshold voltage and overall performance of the MOSFET.

2. How do you reduce power dissipation in MOSFET circuits?

To reduce power dissipation:

  • Minimize the switching losses.
  • Use lower gate capacitance MOSFETs.
  • Use appropriate drive voltages.
  • Implement efficient cooling mechanisms.

3. What is the significance of the MOSFET’s Rds(on)?

Rds(on) is the drain-source on-resistance when the MOSFET is in the ON state. Lower Rds(on) values are desirable for higher efficiency in switching applications.

4. What is the role of MOSFETs in power electronics?

MOSFETs in power electronics are widely used for switching applications like DC-DC converters, motor drivers, and power inverters. Their ability to operate at high frequencies and efficiency makes them ideal for power electronics.

5. How does a MOSFET operate in the saturation region?

When a MOSFET operates in the saturation region, it functions as an amplifier where the current flowing through the Drain is relatively constant and largely independent of the Drain-Source voltage. This region is also called the active region, and it’s crucial for analog applications like amplification.

Here’s how MOSFET operation in the saturation region works:

  1. Condition for Saturation
  • To operate in the saturation region, the following condition must be satisfied:
  • Vds β‰₯ Vgs – Vth, where:
    • Vds is the Drain-Source voltage.
    • Vgs is the Gate-Source voltage.
    • Vth is the threshold voltage, the minimum Gate-Source voltage required to create a conductive channel between the Drain and Source.
    • In simpler terms, the Drain-Source voltage (Vds) must be larger than the Gate-Source voltage (Vgs) minus the threshold voltage (Vth) for the MOSFET to enter saturation.
  1. Formation of the Channel
  • In an N-channel MOSFET, when a positive voltage is applied to the Gate relative to the Source (Vgs > Vth), an inversion layer or conductive channel of electrons forms between the Source and Drain.
  • As the Gate-Source voltage increases, the number of electrons in the channel increases, allowing more current to flow between the Source and Drain.
  1. Channel Pinch-Off
  • In the saturation region, as Vds continues to increase, the channel near the Drain end starts to pinch off.
  • Pinch-off means that the electric field from the Drain terminal is strong enough to deplete the channel near the Drain, causing the effective length of the conductive channel to shorten.
  1. Current in Saturation
  • The current flowing from the Drain to Source (Ids) in the saturation region becomes relatively constant and is independent of Vds. It only depends on the Gate-Source voltage (Vgs) and is determined by the MOSFET’s characteristics.
  • The Drain current (Ids) in saturation is given by the equation:

Ids​ = (1/2) ​μn​Cox​ W/L​ (Vgsβˆ’ Vth​)2

where:

  • ΞΌn is the electron mobility (for N-channel MOSFET).
  • Cox is the gate oxide capacitance per unit area.
  • W is the width of the MOSFET channel.
  • L is the length of the MOSFET channel.
  • Vgs is the Gate-Source voltage.
  • Vth is the threshold voltage.

This equation shows that Ids depends on Vgs but is independent of Vds in the saturation region, which is why the current remains relatively constant regardless of further increases in Vds.

6. What is gate charge in MOSFETs, and why is it important?

The gate charge represents the total amount of charge required to switch the MOSFET on or off. It’s crucial in high-frequency applications, as it directly affects the switching speed and efficiency.

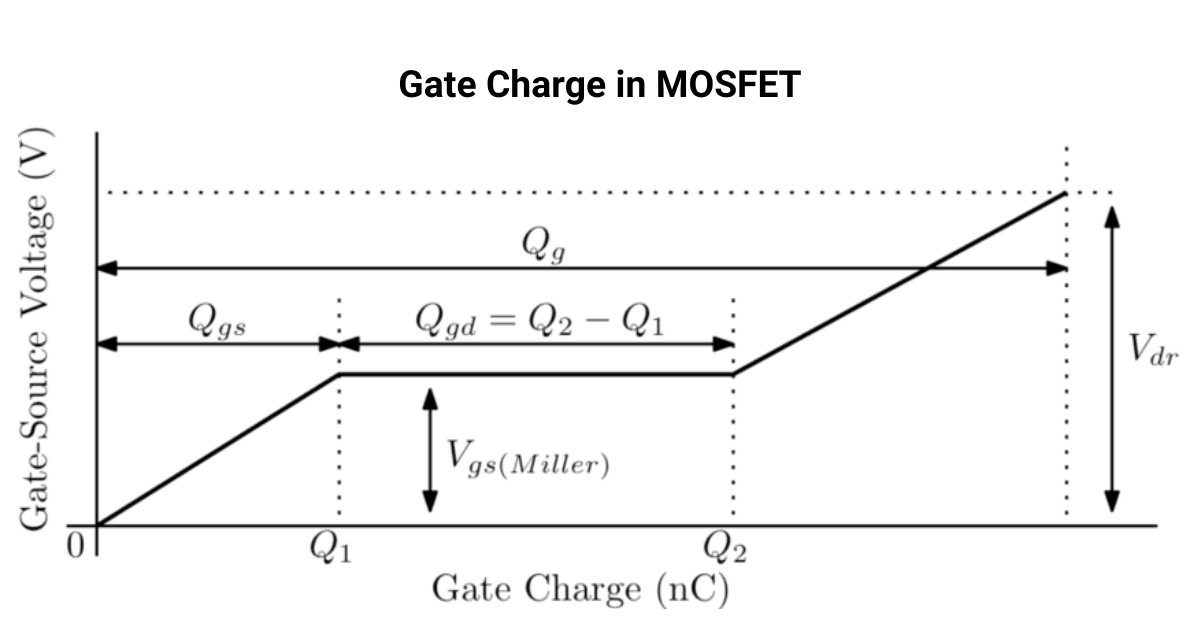

Gate Charge in MOSFET

7. Explain the concept of MOSFET parasitics.

MOSFET parasitics refer to unwanted capacitances, inductances, and resistances inherent in the MOSFET structure that affect the performance, particularly in high-frequency applications.

8. How do you select a MOSFET for a specific application?

Selecting a MOSFET involves considering:

Logical question: What happens if you select a MOSFET with a lower breakdown voltage than required?

Hint: Think about what might happen under high voltage conditions.

9. What are the key differences between a MOSFET used in analog circuits and one used in digital circuits?

In analog circuits, MOSFETs are used for continuous signal amplification, whereas in digital circuits, they are primarily used for switching.

10. What is hot carrier injection in MOSFETs?

Hot carrier injection is a phenomenon where high-energy carriers (electrons or holes) gain enough energy to cross the energy barrier at the silicon-oxide interface, degrading the MOSFET over time.

11. Describe the fabrication process of a MOSFET.

The process involves:

  • Oxidation: Growing a silicon dioxide layer on a silicon wafer.
  • Photolithography: Patterning the wafer for source, drain, and gate regions.
  • Doping: Introducing impurities to create n-type or p-type regions.
  • Metallization: Adding metal contacts to the gate, source, and drain.

12. What are hot carrier effects in MOSFETs?

Hot carriers are high-energy electrons or holes that escape into the gate oxide layer due to high electric fields near the drain. This can degrade the device over time, reducing performance and reliability.

13. Why are MOSFETs preferred in CMOS technology?

MOSFETs are preferred in CMOS technology because they enable efficient power consumption and high-speed operation. CMOS circuits use complementary pairs of NMOS and PMOS transistors, where only one is active at any time during switching. This configuration minimizes static power dissipation, making CMOS ideal for low-power applications.

Additionally, MOSFETs have high input impedance and excellent scalability, essential for modern integrated circuits. Their ability to function effectively at small geometries supports the miniaturization of electronic devices.

Wrapping Up: Logical Question to Ponder

Can a MOSFET ever act as a perfect switch? Why or why not?

Hint: Consider real-world factors like Rds(on), switching speed, and parasitic effects.

Conclusion

Understanding MOSFETs is crucial for anyone working in electronics, whether in design, testing, or practical applications. The questions outlined above will help you prepare for MOSFET interviews, whether you’re just starting out or are a seasoned professional.

Be sure to not only memorize these questions but also practice by applying them in practical scenarios, as MOSFETs are a critical part of modern electronic systems.

Related Articles

Multiple Choice Questions

1. In a MOSFET, what happens if the gate-source voltage (V_GS) exceeds the threshold voltage (V_TH) but the drain-source voltage (V_DS) is less than V_GS - V_TH?

  • a) The MOSFET operates in the cutoff region
  • b) The MOSFET operates in the triode region
  • c) The MOSFET operates in the saturation region
  • d) The MOSFET operates in the breakdown region

2. Which of the following statements best describes the body effect in a MOSFET?

  • a) The threshold voltage increases with increasing source-bulk voltage
  • b) The threshold voltage decreases with increasing drain-bulk voltage
  • c) The threshold voltage is independent of the bulk potential
  • d) The body effect only occurs in p-channel MOSFETs

3. If the channel length of a MOSFET is reduced while keeping all other parameters constant, what impact does this have on the threshold voltage?

  • a) Threshold voltage increases
  • b) Threshold voltage decreases
  • c) Threshold voltage remains constant
  • d) Threshold voltage depends on gate oxide capacitance only

4. Consider an n-channel MOSFET with the following characteristics: V_GS = 3V, V_DS = 5V, and V_TH = 2V. In which region is the MOSFET operating?

  • a) Cutoff region
  • b) Triode region
  • c) Saturation region
  • d) Breakdown region

5. In a MOSFET, why is the subthreshold region considered inefficient for switching operations?

  • a) The current increases exponentially with gate voltage
  • b) The MOSFET is fully ON
  • c) Leakage current dominates in this region
  • d) The MOSFET is in saturation, allowing maximum current flow

6. What is the main advantage of a FinFET (Fin Field-Effect Transistor) compared to traditional planar MOSFETs?

  • a) Lower gate capacitance
  • b) Reduced short-channel effects
  • c) Higher threshold voltage
  • d) Reduced subthreshold slope

7. In an enhancement-mode MOSFET, what is the key condition required for channel formation?

  • a) V_GS must be less than V_DS
  • b) V_GS must be greater than V_TH
  • c) V_DS must be greater than V_GS
  • d) V_TH must be less than V_GS - V_DS

8. For a MOSFET in the saturation region, which of the following relationships holds true for drain current (I_D)?

  • a) 𝐼𝐷 = 𝐾𝑛/2 ( 𝑉𝐺𝑆 βˆ’ 𝑉𝑇𝐻 )2
  • b) 𝐼𝐷 = 𝐾𝑛 ( 𝑉𝐷𝑆 βˆ’ 𝑉𝐺𝑆 )
  • c) 𝐼𝐷 = 𝐾𝑛𝑉𝐷𝑆 ( 𝑉𝐺𝑆 βˆ’ 𝑉𝐷𝑆 )
  • d) 𝐼𝐷 = 𝐾𝑛/2 ( 𝑉𝐺𝑆 + 𝑉𝑇𝐻 )2

9. What is the main purpose of using a high-k dielectric material in MOSFET fabrication?

  • a) To reduce the channel length
  • b) To increase the gate capacitance without increasing gate leakage
  • c) To decrease the threshold voltage
  • d) To increase the electric field across the channel

10. In a long-channel MOSFET operating in the triode region, how does the drain current (I_D) behave when the drain-source voltage (V_DS) increases?

  • a) I_D increases linearly with V_DS
  • b) I_D decreases exponentially with V_DS
  • c) I_D saturates as V_DS increases
  • d) I_D remains constant as V_DS increases

11. Why do short-channel effects become more pronounced as the MOSFET channel length decreases?

  • a) Gate oxide capacitance increases
  • b) Drain-induced barrier lowering (DIBL) reduces threshold voltage
  • c) Source resistance dominates the device behavior
  • d) Subthreshold swing becomes steeper

12. Which mechanism leads to punch-through in a MOSFET?

  • a) Excessive gate leakage current
  • b) Channel formation at very low V_GS
  • c) Subthreshold conduction in the reverse direction
  • d) Depletion regions from source and drain overlapping

13. What is the typical impact of increasing the gate length on the overall capacitance of a MOSFET?

  • a) Gate capacitance increases
  • b) Gate capacitance decreases
  • c) Gate capacitance remains constant
  • d) Gate capacitance depends solely on oxide thickness, not gate length

14. If the source and drain are interchanged in a MOSFET, how is the current-voltage characteristic affected in the linear region?

  • a) Current direction reverses, but magnitude remains the same
  • b) No current flows in the reverse configuration
  • c) Current magnitude decreases significantly
  • d) MOSFET enters saturation region instantly

15. In a MOSFET, what factor primarily controls the mobility degradation at high vertical electric fields?

  • a) Scattering from impurities
  • b) Increased gate capacitance
  • c) Inversion layer mobility degradation
  • d) Quantum mechanical tunneling

16. In a MOSFET, how does the channel length modulation affect the drain current in the saturation region?

  • a) It makes the drain current decrease linearly
  • b) It causes the drain current to increase with increasing V_DS
  • c) It has no effect on the drain current in the saturation region
  • d) It decreases the transconductance

17. Which of the following statements about MOSFET transconductance (g_m) is accurate?

  • a) Transconductance is independent of the gate-source voltage
  • b) Transconductance is proportional to the square root of drain current
  • c) Transconductance is inversely proportional to channel length
  • d) Transconductance decreases in the triode region

18. In a MOSFET, what is the impact of increasing gate-oxide thickness on subthreshold swing?

  • a) Subthreshold swing increases
  • b) Subthreshold swing decreases
  • c) Subthreshold swing remains constant
  • d) Subthreshold swing depends on drain-source voltage

19. Why does velocity saturation occur in short-channel MOSFETs?

  • a) Electric field becomes too small in the channel
  • b) The drift velocity of electrons reaches its maximum limit
  • c) Gate capacitance becomes non-linear
  • d) Channel resistance increases abruptly

20. In MOSFET-based analog circuits, what is the primary consequence of the Miller effect?

  • a) Increased power dissipation
  • b) Increased input capacitance
  • c) Reduced bandwidth
  • d) Reduced gain in saturation region

Frequently Asked Questions

1. Why is it called MOSFET?

Metal-oxide-semiconductor field-effect transistor is referred to as MOSFET. It is a MOS-structured field-effect transistor.

2. Why MOSFET is widely used?

It is due toΒ their inherent benefits (zero gate current, high and adjustable output impedance, and enhanced robustness compared to BJTs, which can be permanently degraded by even slightly breaking down the emitter-base), MOSFETs are widely used in a wide variety of analog circuits.

3. What is JFET and MOSFET?

A semiconductor device with three terminals is called a JFET (Junction Gate Field-Effect Transistor). A semiconductor device with four terminals is called a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor).

4. Is MOSFET same as IGBT?

MOSFETs and IGBTs are utilized differently in 400–1200 V applications:

  1. IGBTs are utilized in inverter applications that need high overload endurance and have a switching frequency of less than 20 kHz.
  2. Inverter applications where the switching frequency is higher than 20 kHz employ MOSFETs.
