Digital Electronics Interview Questions (Freshers)
1. What is a logic gate?
A logic gate is a basic building block of digital electronics that performs a logical operation on one or more binary inputs and produces a single binary output.
Types of Logic Gates:
1. Basic Gates:
- AND
- OR
- NOT
2. Universal Gates:
- NAND
- NOR
3. Other Gates:
- XOR
- XNOR
2. Define Boolean algebra.
Boolean algebra is a mathematical system for expressing logical operations using binary variables and logical operators such as AND, OR, and NOT.
Key Concepts:
- Boolean Variables
- Logical Operators
- Laws of Boolean Algebra
3. What is a flip-flop?
A flip-flop is a bistable circuit element that can store one bit of information. It has two stable states, and it changes its state based on the input signals.
Types of Flip-flops:
- SR Flip-flop
- D Flip-flop
- JK Flip-flop
- T Flip-flop
4. Difference between combinational and sequential circuits.
| Combinational Circuit | Sequential Circuit |
|---|---|
The output depends on the present input only and there is no need for feedback for input and output, so a memory element is not required. |
The output depends upon both the present input and the present state (previous output), so a memory element is required to save the feedback state. |
Faster logic circuits. |
Slower than combinational circuits. |
The memory units are required. |
The memory units are required to store the previous values of inputs. |
Clock signals are not required. |
Clock signals are required. |
Example: MUX, DEMUX, encoder, decoder, adders and subtractors. | Example: Shift registers and counters. |
5. What is a multiplexer?
A multiplexer is a digital switch that selects one of several input signals and forwards the selected input into a single line.
Multiplexers are also known as “Data n selector, parallel to serial converter, many to one circuit, parallel to serial converter, universal logic circuit”. Multiplexers are basically used to increase the amount of data that can be sent over the network within a specific amount of time and bandwidth.
Applications:
- Data Routing
- Signal Routing
- Data Compression
6. Define Decoder.
Decoders are combinational circuits that convert binary data into two or more output lines. N input lines are used to transmit the binary data. The binary information’s 2N-bit code is defined by the output lines. To put it simply, the Decoder reverses the actions of the Encoder.
For simplicity, only one input line is active at a time. The binary data is equivalent to the generated 2N-bit output code.
There are various types of Decoders:
- Binary Decoder
- BCD Decoder
- Priority Decoder
7. Explain De Morgan’s Theorem.
De Morgan’s Theorem is expressed using the following two theorems:
(i) The complement of a product of two numbers is the sum of the complements of those two numbers.
(A.B)’ = A’ + B’
(ii) The complement of the sum of two numbers is equal to the product of the complement of two numbers.
(A + B)’ = A’B’
8. Explain the difference between a latch and a flip-flop.
| Latch | Flip-flop |
|---|---|
It is a level-triggered device. |
It is an edge-triggered device. |
The latch doesn’t have a clock signal. |
Flip-flops always have a clock signal. |
Latches are fast. |
Flip-flops are slow. |
Output of the latches changes as we change the input. |
A control signal only changes its state when it goes from low to high or high to low. |
Example: D Flip-flop, JK Flip-flop |
Example: D Latch, SR Latch |
9. What is a shift register?
Definition: A shift register is a sequential circuit that stores and shifts data serially, bit by bit.
A set of flip flops called a shift register is used to store several pieces of data. By using clock pulses, the bits stored in these registers can be made to move both inside and outside of the registers. One can create an n-bit shift register by joining n flip-flops, each of which can hold one bit of data. “Shift left registers” are the registers that will move the bits to the left whereas “Shift right registers” are the registers that will move the bits to the right.
Types of Shift registers:
- Serial-in Serial-out (SISO)
- Serial-in Parallel-out (SIPO)
- Parallel-in Serial-out (PISO)
- Parallel-in Parallel-out (PIPO)
10. Define multiplexing and demultiplexing.
Multiplexing: Combining multiple signals into a single channel.
Demultiplexing: Splitting a single channel into multiple signals.
11. What is the difference between half-adder and full-adder?
Half-adder: Adds two single binary digits producing a sum and a carry. It has two inputs A and B and two outputs S (sum) and C (carry). It is represented by an XOR logic gate and an AND logic gate.
Circuit Diagram and Truth Table:

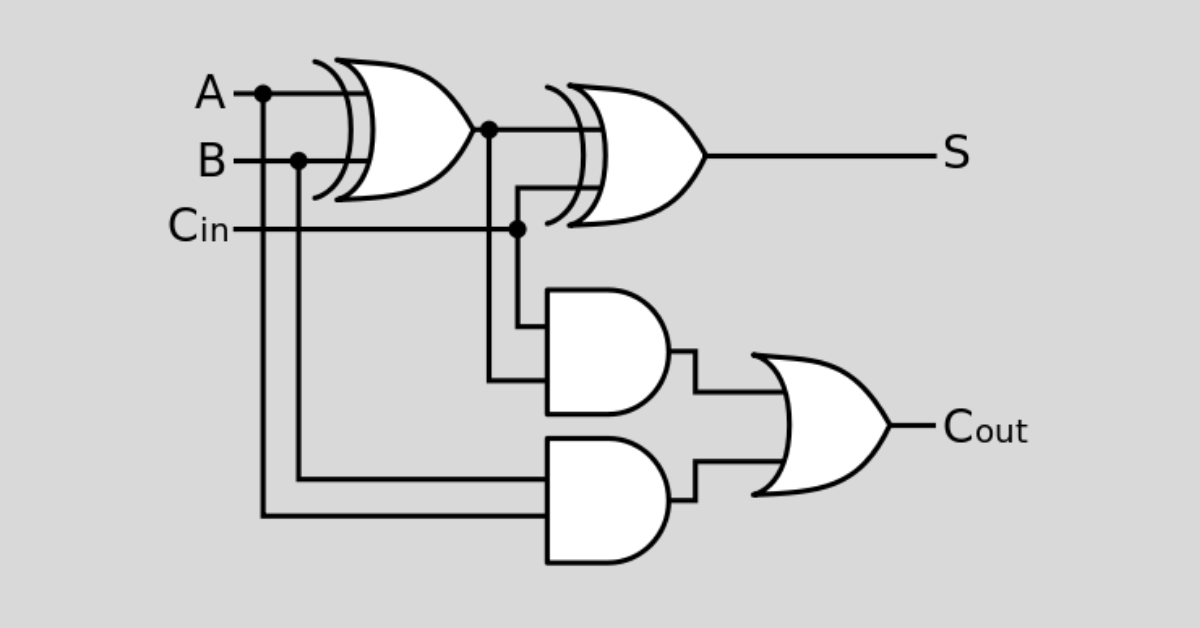

Full-adder: Adds three binary digits including a carry-in, producing a sum and a carry-out. It has three inputs A, B and a carry bit. Full adders are represented with AND, OR and XOR logic gates.
Circuit Diagram and Truth Table:
12. Explain the concept of Race around condition in flip-flops.
A race around condition occurs when the outputs of a flip-flop change faster than the propagation delay, leading to an unstable state.
Prevention:
- Using Master-Slave Flip-flops
- Clock Synchronization
13. What are Karnaugh Maps or K Maps?
Karnaugh Maps (K-maps) are graphical tools used to simplify Boolean expressions by grouping and combining minterms and maxterms. It is a table-like representation but it gives more information than TRUTH TABLE.
K-map can be resolved into two forms Sum of Product (SOP) and Product of Sum (POS) as per the need of the problem.
K-maps simplify Boolean expressions, helping design efficient circuits. A 2×2 K-map is shown below to simplify an expression like AB’ + AB
Advantages:
- Visual Representation
- Simplification of Boolean Functions
14. Explain the concept of Fan-in and Fan-out.
- Fan-in: Number of input lines connected to a gate without the degradation of the voltage level of input lines.
- Fan-out: Number of gates connected to the output of a gate can drive maintaining its output levels within the specified limits.
15. What is a comparator?
A comparator is a combinational circuit that compares two binary numbers and determines their relationship (equal, greater than, or less than).
Applications:
- Digital-to-Analog Conversion
- Error Detection
Digital Electronics Interview Questions (Experienced)
1. What is a register?
A register is a group of flip-flops used to store multiple bits of data temporarily.
Types:
- Shift Register
- Parallel Register
- Serial Register
2. Explain the concept of Hazards in digital circuits.
Hazards are undesired glitches or fluctuations in the output of a digital circuit due to timing mismatches or asynchronous operations.
Types of Hazards:
(i) Static Hazard
A static hazard happens when a change in input causes the output before stabilizing to its correct value.
There are two types of static hazards, which are as follows:
Static-0 Hazard: If the output is currently at logic state 0 and after the input changes its state, the output changes momentarily to 1 before settling on 0, then it is said to be a Static-0 hazard.
Static-1 Hazard: If the output is currently at logic state 1 and after the input changes its state, the output changes momentarily to 0 before settling on 1, then it is said to be a Static-1 hazard.
(ii) Dynamic Hazard
Dynamic hazards are those in which the output changes more frequently than it should, changing from 0 to 1 or from 1 to 0 only once. Dynamic risks are limited to circuits with multiple levels.
When the output changes for two adjacent input combinations at the same time, there is a risk of dynamic hazards; the output should only change once. However, on occasion, it might shift three or more times in brief bursts due to various delays in multiple pathways.
3. What is a multiplexer tree?
A multiplexer tree is a hierarchical arrangement of multiplexers used for data selection and routing in large digital systems.
Advantages:
- Scalability
- Reduced Complexity
4. Define PLA (Programmable Logic Array).
A fixed architecture logic device with programmable AND and OR gates is called a programmable logic array (PLA). In simple terms, PLAs are a kind of programmable logic device that can be used to construct digital circuits that can be reconfigured. PLDs are manufactured with an undefined function, but they are programmed before being used. PLA is a logic and memory combination.
Components:
- AND Array
- OR Array
5. What is FPGA (Field-Programmable Gate Array)?
FPGA is an integrated circuit that can be reprogrammed to perform various digital functions after manufacturing. They have thousands of gates. In the field of VLSI FPGAs have been very popular. Languages such as VHDL and Verilog are used to write the code for FPGA programming.
Advantages:
- Better performance and flexibility.
- Capable of handling Parallel Processing.
- They are cost-efficient.
- FPGAs allow you to finish the development of your product in a very short time, so they are available in the market in a shorter time.
6. Define rise time, fall time and hold time.
(i) Rise Time: It is the time that is required to change the voltage level from 10% to 90%.
(ii) Fall Time: It is the time that is required to change the voltage level from 90% to 10%.
(iii) Hold Time: It is the minimum time at which the voltage level becomes constant after triggering the clock pulse. It is denoted by thold
7. What is a ROM (Read-Only Memory)?
ROM is a type of memory that stores data permanently and allows read-only access.
Types:
- Mask ROM
- Programmable ROM (PROM)
- Erasable Programmable ROM (EPROM)
- Electrically Erasable Programmable ROM (EEPROM)
8. Define the term ‘Race condition’.
A race condition occurs when the behavior of a digital circuit depends on the timing of its input signals, leading to unpredictable outputs.
Prevention:
- Synchronization Techniques
- Critical Path Analysis
9. What is a Counter?
A counter is a sequential circuit that counts clock pulses and produces a binary or BCD output representing the count. One of the most common uses for the flip flop is as a counter. The output of the counter contains a predefined state based on the clock pulse. With the counter’s output, one can count the number of pulses.
Types:
- Asynchronous Counter
- Synchronous Counter
- Up Counter
- Down Counter
10. Explain the concept of Metastability.
Metastability is a transient state in digital circuits where a flip-flop is unable to settle to a stable state, leading to unpredictable outputs.
In metastable states, the circuit may be unable to settle into a stable ‘0’ or ‘1’ logic level within the time required for proper circuit operation. As a result, the circuit can act in unpredictable ways, and may lead to a system failure, sometimes referred to as a “glitch”.
Causes:
- Asynchronous Inputs
- Clock Jitter
11. What is a latch-up?
A latch-up is a kind of short circuit that can happen in an integrated circuit (IC) in electronics. More precisely, it is the unintentional establishment of a low-impedance path between a MOSFET circuit’s power supply rails, which sets off a parasitic structure that impairs the part’s normal operation and may even cause it to explode from overcurrent. To fix this, a power cycle is necessary.
Effects:
- Circuit Damage
- Functional Failure
12. Define the terms ‘Static Timing Analysis’.
Static Timing Analysis is a method used to verify the timing performance of a digital circuit without considering dynamic factors like data-dependent variations.
Applications:
- Timing Verification
- Design Optimization
13. What is the significance of RTL (Register-Transfer Level) Design?
RTL Design is a high-level abstraction technique used to model digital circuits using registers and data transfers between them.
Three main components make up RTL, which is based on synchronous logic: clocks that regulate when the state changes, combinatorial logic that specifies the next state inputs, and registers that store state information.
Advantages:
- Design Reusability
- Performance Optimization
14. Explain the concept of Power Dissipation in digital circuits.
Power Dissipation refers to the energy consumed by a digital circuit during its operation, leading to heat generation.
In other words the process by which an electrical or electronic device generates heat (energy loss or waste) as an unwanted byproduct of its primary action is known as power dissipation. In computer architecture, power dissipation is a major concern, as it is the case with central processing units.
Factors Affecting Power Dissipation:
- Supply Voltage
- Switching Frequency
- Circuit Complexity
15. What are Timing Constraints in digital design?
Timing Constraints are specific requirements imposed on a digital circuit to ensure correct operation by defining the maximum and minimum time intervals for signal propagation.
Types:
- Setup Time
- Hold Time
- Clock-to-Q Delay
Multiple Choice Questions
1. Which logic gate outputs true only when both inputs are true?
2. What is the binary representation of the decimal number 13?
3. Diagram Description: A 555 timer IC with pins 2 and 6 connected together, a resistor between pin 6 and Vcc, another resistor between pins 6 and 7, and a capacitor between pins 7 and ground.
Then, for a digital clock circuit using a 555 timer in astable mode, what is the typical function of the circuit?
4. Which type of flip-flop changes state on the falling edge of the clock signal?
5. What is the purpose of a multiplexer?
6. Which Boolean algebra property is represented by the equation A + A' = 1?
7. In digital circuits, what does an XOR gate do?
8. How many output lines does a 3-to-8 decoder have?
9. Which component is used for temporary data storage in digital circuits?
10. In an SR flip-flop, what happens when both S and R inputs are high?
11. What is the main advantage of using a binary numbering system in digital electronics?
12. What is the output of a NAND gate when both inputs are high (1)?
13. Which of the following is not a basic logic gate?
14. What does an SR flip-flop stand for?
15. In a sequential circuit, what element is primarily responsible for storing the state?
16. What is the typical use of a D flip-flop in digital circuits?
17. In VLSI design, what does the term 'scaling' refer to?
18. Which logic family has the highest speed?
19. What is the typical application of a Schmitt trigger in digital circuits?
20. What is the purpose of an encoder in digital circuits?
Interview Preparation Tips (Bonus)
- Review Fundamental Concepts: Practice logic gate functions and their real-world applications.
- Practice Circuit Simplification: Simplify circuits with both K-maps and Boolean expressions.
- Familiarize with Timing Diagrams: Understanding sequential circuit timing can give you an edge in interviews for positions focusing on embedded systems.
- Avoid Common Pitfalls: Pay attention to small details in truth tables and timing diagrams, as errors here often lead to incorrect answers.
